Ultra-Bright LED X-Ray Film Viewer(Back Light Mode)
In Stock
In the medical environment, film viewers are important tools for doctors, radiographers, and other professionals to view and analyze medical images. Its high illumination quality and user-friendly design help to improve the diagnostic accuracy of medical images and medical work efficiency.
Product Detail

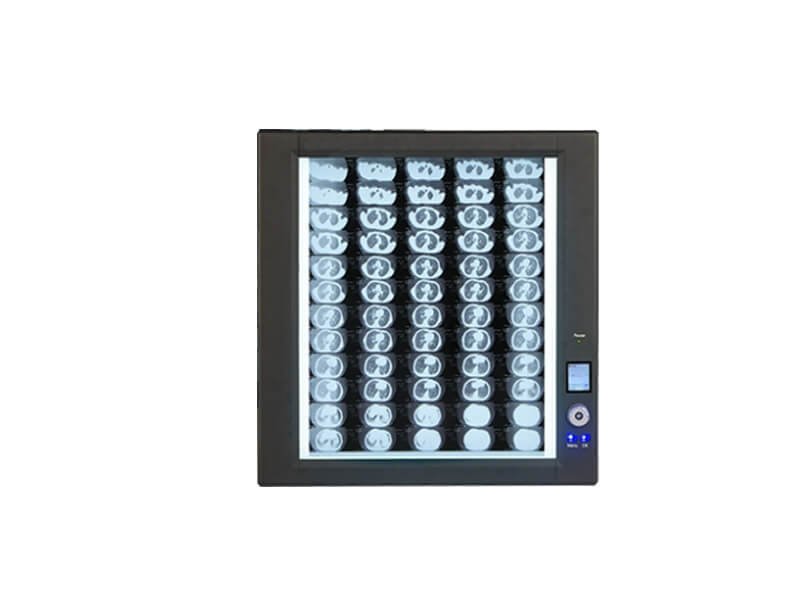

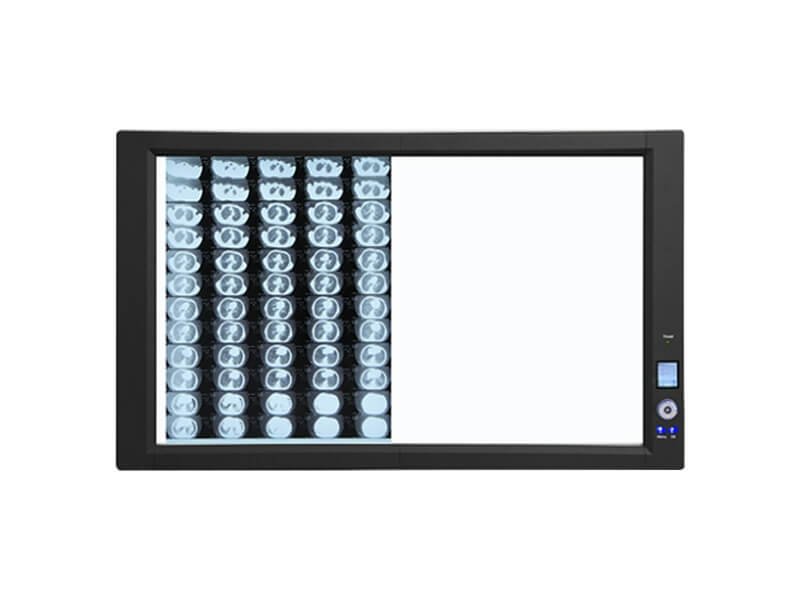

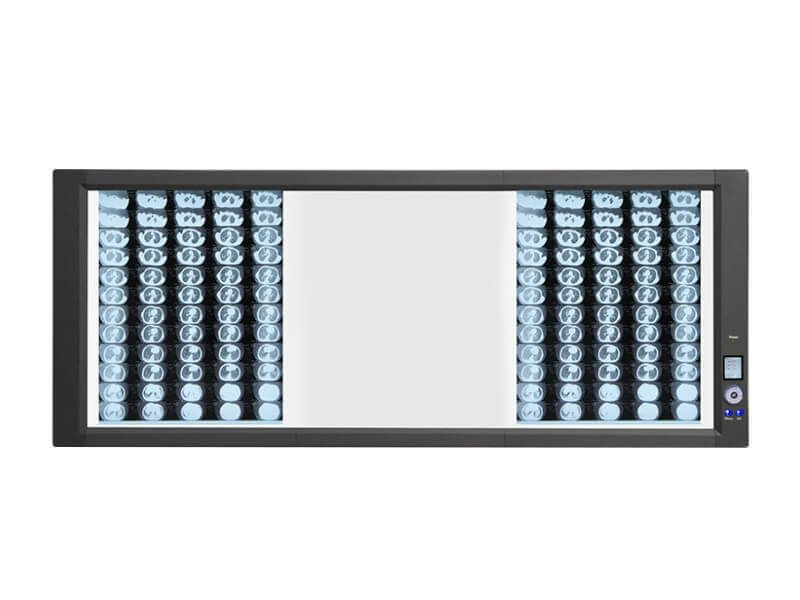

AmcareMed backlight X-ray film viewers are professional lighting devices used in the field of medical imaging to view medical images such as X-rays, CT scans, magnetic resonance imaging (MRI), etc. The backlight technology provides a more uniform and softer illumination than traditional film viewers. Compared to traditional viewing lights, the backlight viewer uses backlighting technology to provide a more uniform and softer illumination to enhance the viewing experience of medical images.
Features
- The highly efficient and durable LED light source, can work more than 100 000hours.
- With dot-matrix backlight technology, the brightness area can be adjustable among 0-6000cd
- 1.77 inch LCD displayer, brightness can adjust 0-100 stages.
- Backlight with light guide plate technology, optimized structure.
- Automatic sensing function, the plug is bright.
- Constant current drive for stable working, and for increasing working life.
- The power supply chip adopts gallium nitride technology, which is more resistant to high temperatures, safer and miniaturized
Main Technical Data
| Model | Single（FV-1） | Double（FV-2） | Triple（FV-3） | Quadruple（FV-4） |
| External Size(mm) | 480×502*38 | 840×502*38 | 1200×502*38 | 1560×502*38 |
| visual Size(mm) | 360×422 | 720×422 | 1080×422 | 1440×422 |
| Max. Power | 30w | 60w | 90w | 120w |
| Maximum X-ray film reading size | 17x14inch (355.6×431.8mm) | |||
| Light Source | super high brightness SMD LED 780pc/panel; CT>6500K; lifespan of 100000hrs | |||
| Electric Parameters | Global Voltage Adaptive built-in power;AC90v-240V; 50/60Hz | |||
| Brightness Setting | 1.77-inch LCD with 0-100 stages brightness adjustment, minimum brightness≤300cd/m2, and maximum brightness≥6000cd/m2. | |||
| Clip device | Silicone clip device | |||
| Mount Type | Wall mounted; Bracket type (optional) | |||
| Application Films | General film, digital film, breast mammography film | |||
| Sensor function | Separate control of each panel, automatic sensing function, plug is bright, memory function, delay power-off function | |||
| Viewing Uniformity | ≥90% | |||
