Patient bedside units are multifunctional systems designed to manage the care and treatment processes of patients in hospitals and healthcare facilities more effectively and safely. These units provide a consolidated solution for the electrical, lighting, low-voltage (such as data communication), medical gases, and other medical requirements that patients need.
The primary objective of these systems is to ensure the comfort and safety of patients. Through electrical connections, power is provided for the medical devices and personal devices of patients. Lighting ensures that patient rooms are well-lit and comfortable. The low-voltage infrastructure is used for tracking health data, updating medical records, and communication, while the medical gas systems assist in delivering oxygen and other medical gases to patients in precise doses.
Patient bedside units also offer data collection and monitoring capabilities that help healthcare professionals manage patient care more effectively. These systems enable patients to have a better treatment experience and allow healthcare staff to closely monitor their patients. Therefore, patient bedside units are a crucial component of modern healthcare services.

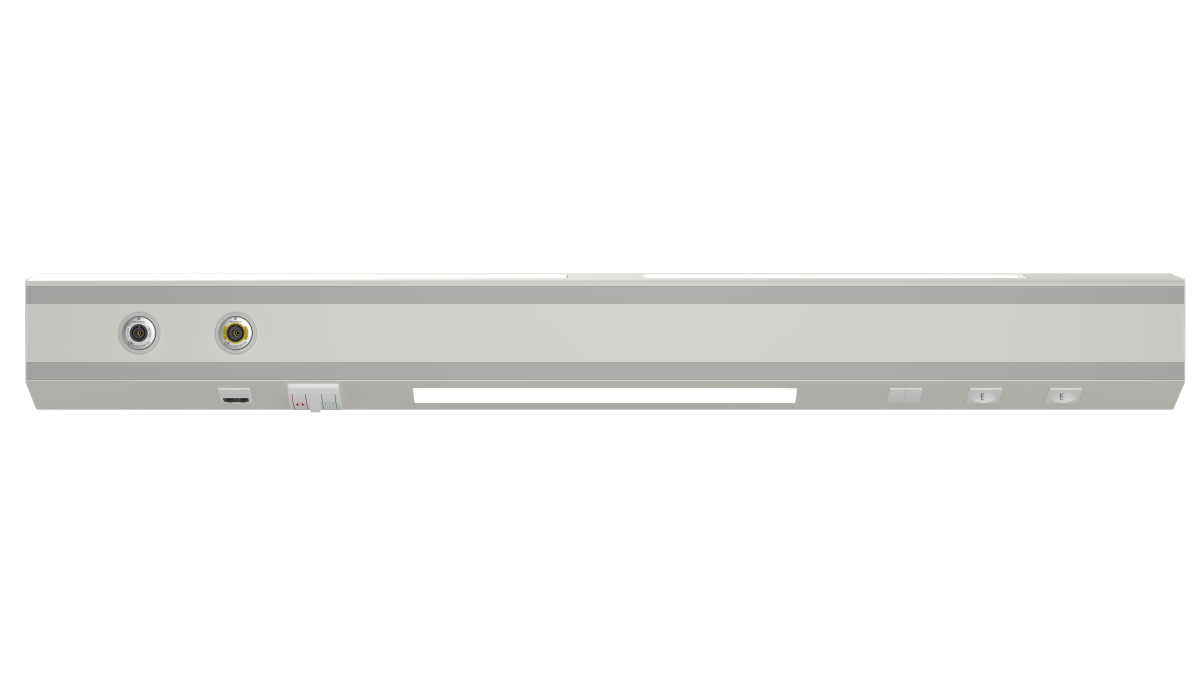

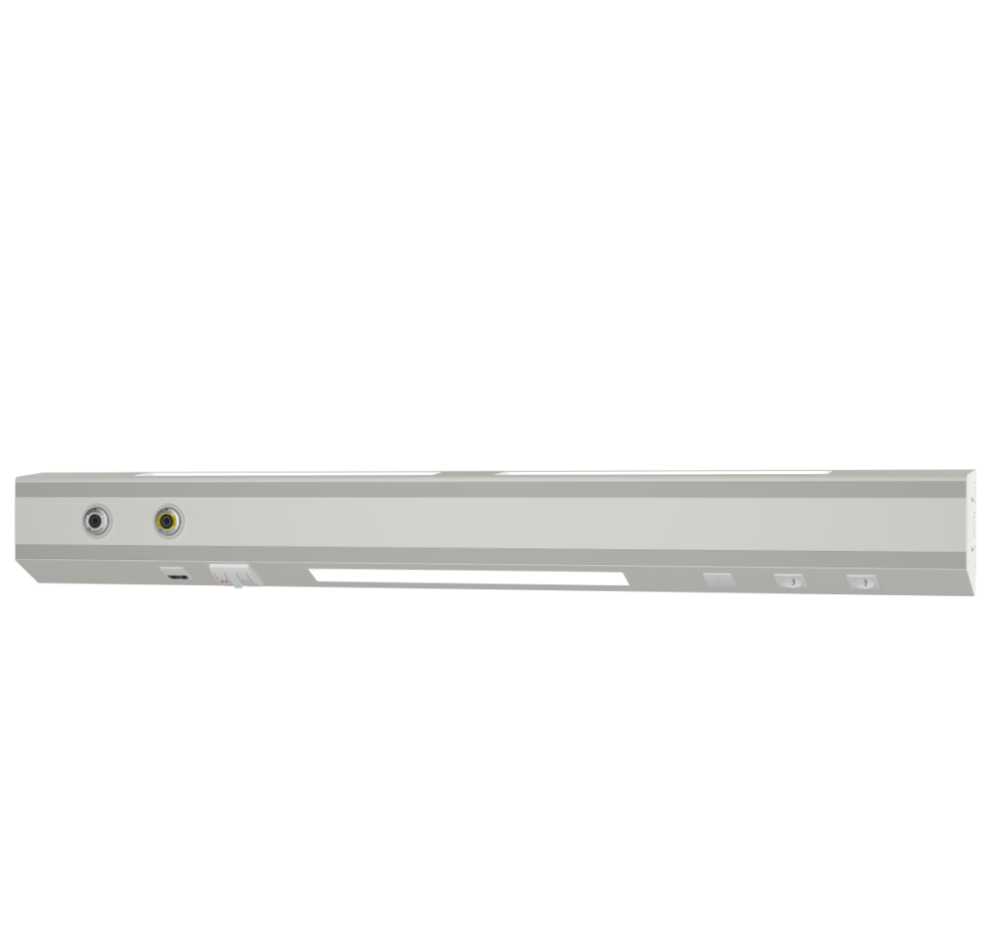

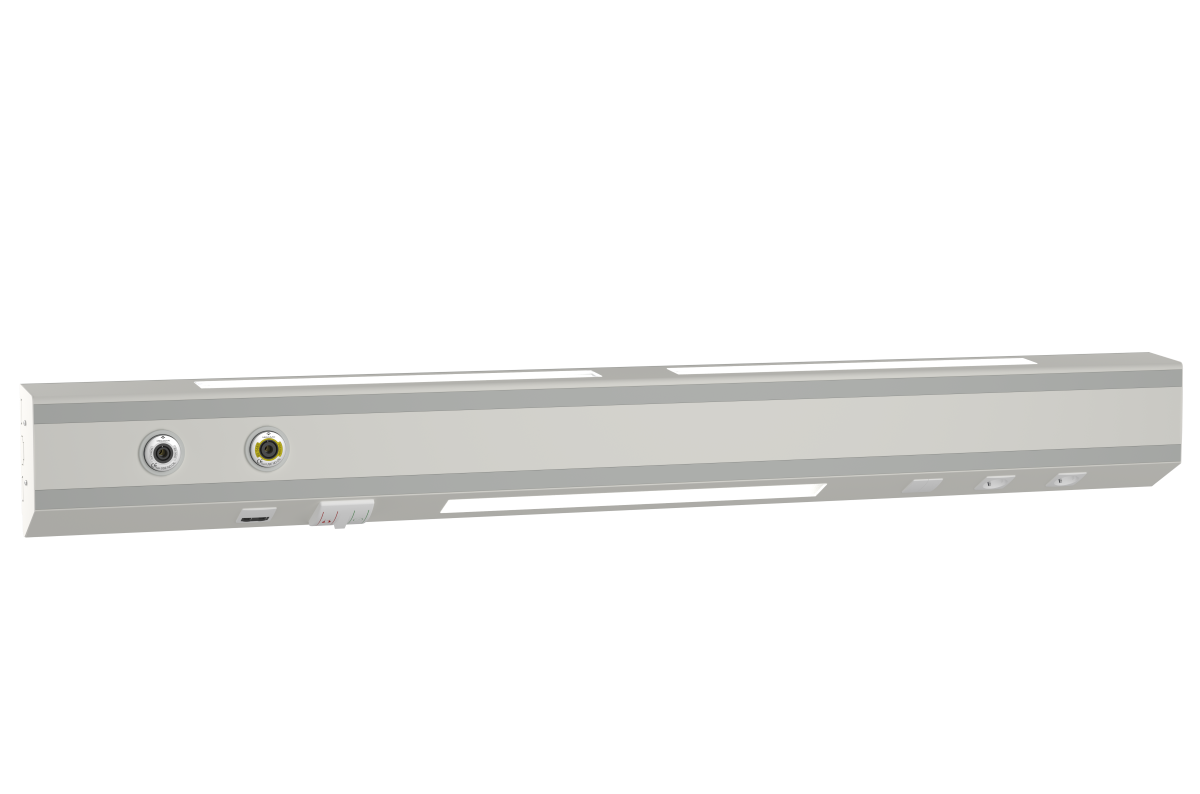

Standard Unit Technical Specifications (One-Person)
Product Code : MG-HBx x:1,2,3 Personality
Recommended Gas Equipment : 1 x Oxygen Gas Outlet, 1 x Vacuum Gas Outlet Recommended
Electrical Equipment : 2 x Power Outlets 1 x Commutator Switch, 1 x 9 W (Led Fluorescent), 1 x 18 W (Led Fluorescent)
Body Grounding : Available
Spot Light Fitting Option : Available
Nurse Call Add Option : Available
Number of Channels : 3 Pieces
Supply Voltage : 220-240 V 50-60 Hz
Length : 125-180 cm (for one-person model)
Package Type : Cardboard Box
Accessories (Optional) : Gas Outlets, Grounding Node, Data Outlet, Nurse Call System.
Antibacterial Paint Option : Available*
Color Options : Blue, Yellow, Red, Lilac**
* Antibacterial paint option may differ from normal paints.
** Different color options may be charged additionally.
Electrical outlets attached to the body with flame-proof plastic plugs, ensuring that no electrical leakage will pass through the body and that both patients and healthcare personnel will not be electrocuted.
All gas and electrical components inlet points and installation connection provision holes were drilled before painting, internal wiring and tubing were completed before product delivery and all tests were carried out according to EN 60601-1.
All internal wiring is equipped with halogen-free cables, as are the plastic insulating plugs of the electrical outlets.
It provides ambient lighting at intensities and angles that will not disturb patients in areas and time periods where lighting is required. There is indirect lighting on the upper side of the unit that can be used as a night light and direct lighting on the lower side that can be used as a reading lamp.
It has an ergonomic and elegant design suitable for modern hospital architecture. Occupies the least possible volume with its compact structure.
Its ergonomic and functional design minimizes injuries from bumps and trips. The wall light is perfectly cleanable with minimized surface roughness, plastic patterns and a fine-grained powder-coated finish.
Easy installation, service and maintenance thanks to its wide duct structure and unique design, reducing these times by 25%.
These products are designed to meet the needs of both patients and healthcare professionals, offering flexibility by providing both horizontal and vertical usage options to better accommodate the working habits of healthcare professionals and patient care.
