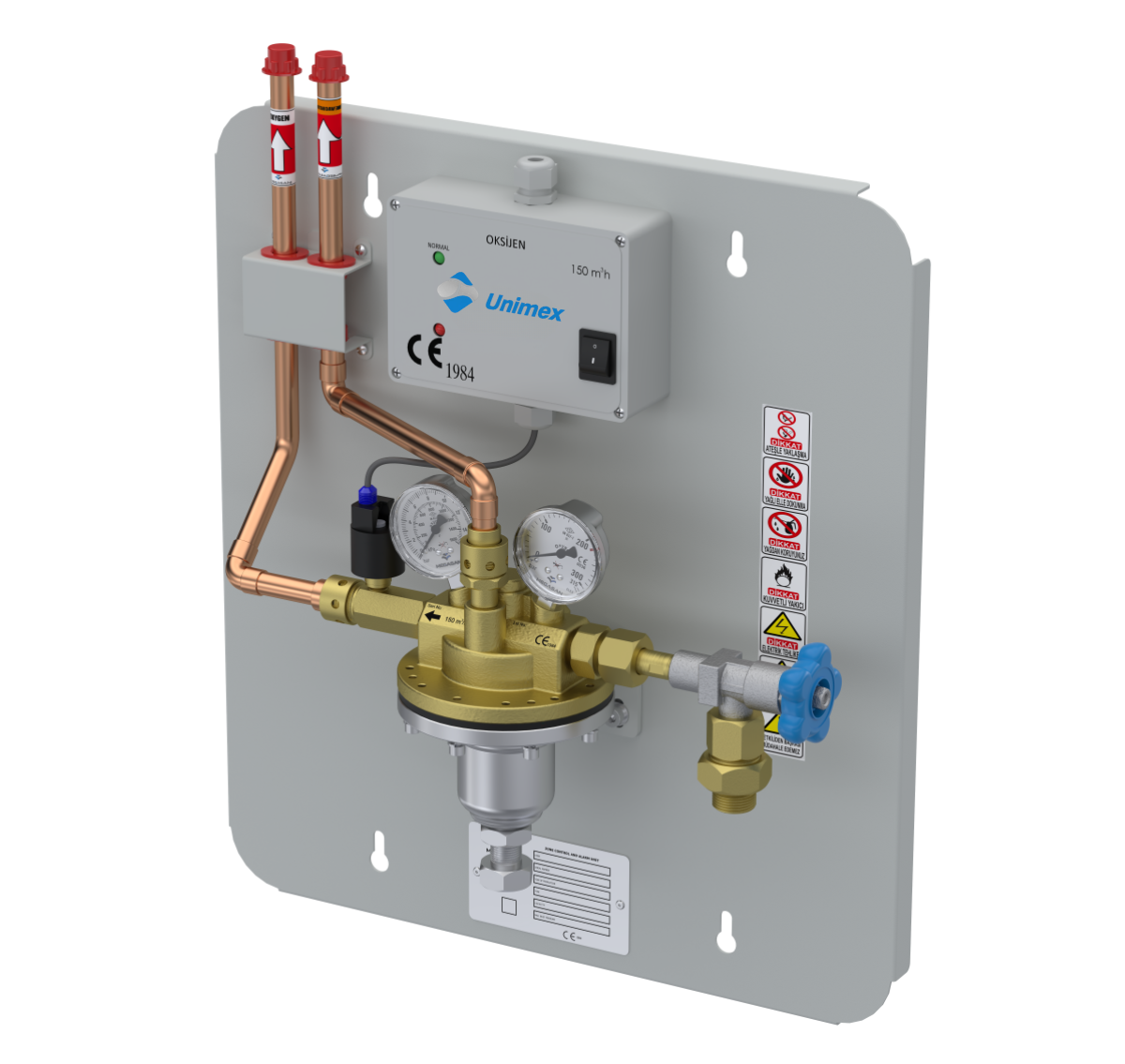

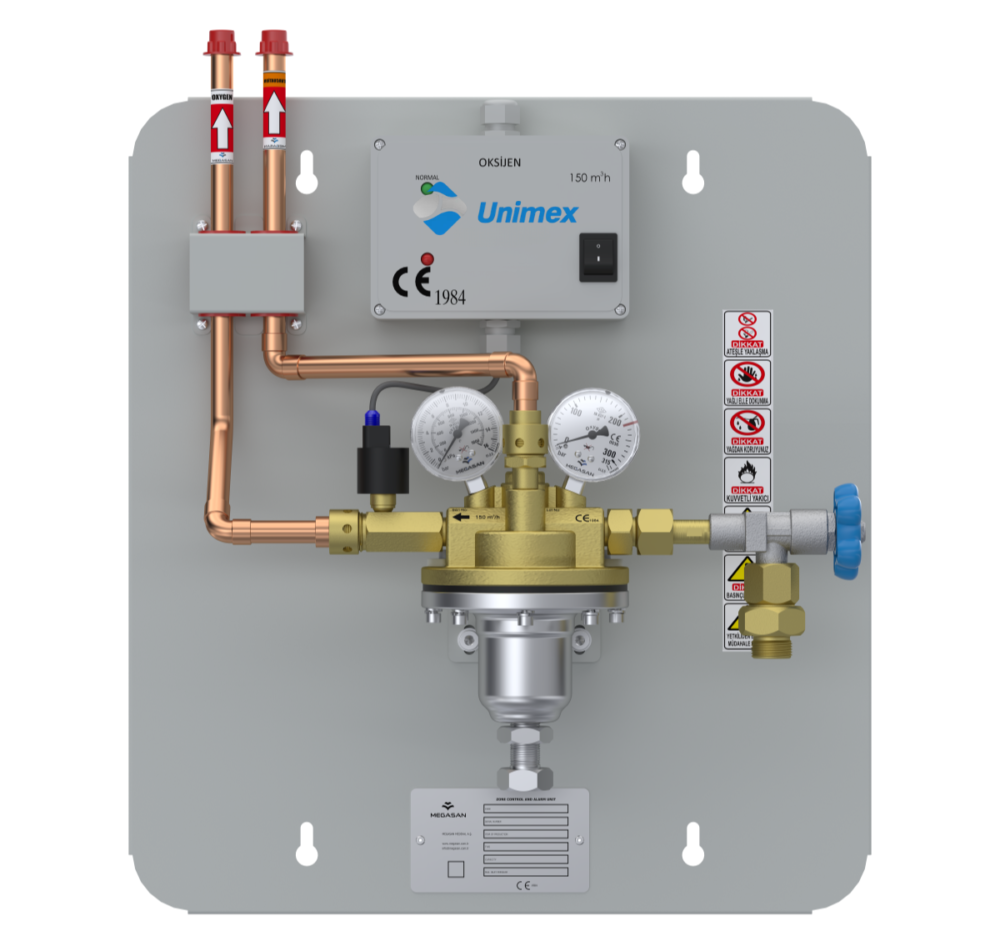

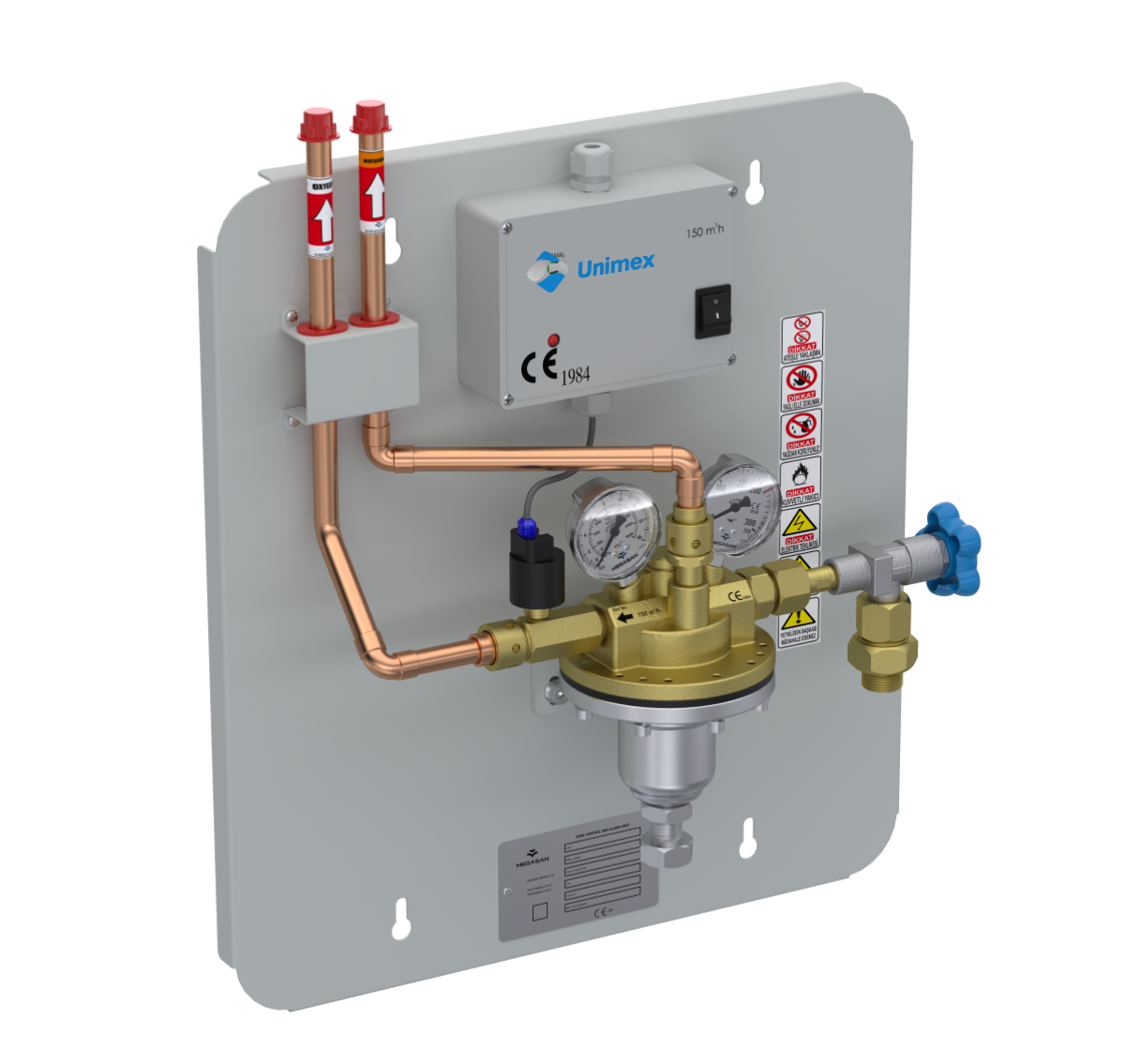

Single High Pressure Reducing Unit
In Stock
Single High pressure reducers ensure that the pressure of medical gases (O2, CO2, N2 O, Compressed Dry Air…) coming from high pressure (230 bar) is adjusted to the required pressure values and given safely to the installation by means of collectors connected to gas cylinders. It is usually reduced to 4-8 Bar values.
Intended Use
It ensures that the pressure of the medical gases needed in hospital installations is brought to the ideal values and the installation is fed. In general, it acts as a backup of the fully automatic oxygen plant. It is connected to the installation of the relevant gas with bypass in parallel with the fully automatic High pressure converter. It ensures the continuity of the supply of the installation in cases where the fully automatic high pressure reducer malfunctions or in service-maintenance situations. It can also be used alone in places that do not require intensive gas usage.
Technical Specifications
Product Code : MG-YBDTx
“x: O (Oxygen), A (N2O), SA (Pure Nitrogen), KG (Mixed Gas), K (CO2), H (Dry Air)”
Product Name : Single High Pressure Reducer Unit
Inlet Pressure : Max. 230 Bar
Outlet pressure : 4 – 8 Bar Capacity : 220m³/h
Number of Inputs : 1 Operating Temperature Value. : (+10) – (+45) C°
Energy Supply : 200-240 V 50-60 Hz 100 Watt
Package Type : Carton Box
Package Sizer : 65 x 58 x 21 cm
