These are the units that ensure all the infrastructure services needed in the intensive care departments of hospitals, such as “medical gases, electricity and weak current (data communication)” are delivered to the patient in the most comfortable and fastest way.
They are multifunctional treatment assistive systems designed to manage the care and treatment processes of critically ill patients more effectively and safely in intensive care units, hospitals and healthcare facilities. These units provide a combination of electricity, lighting, low current (such as data communication), medical gases and similar medical needs in order to respond to the urgent needs of patients.
These units allow the devices and other equipment that patients and healthcare professionals will need to be positioned safely, closest to the patient and in the most appropriate way. In this way, it ensures that there is minimum cable and hose clutter around the patient. Therefore, it allows healthcare professionals to access the patient more easily and quickly. These units, manufactured in various shapes, are optimized according to the needs of different intensive care types and can be used in many different locations. For this reason, it is an indispensable element of all types of intensive care services in modern hospital architecture.
Intended Use
Intensive care units are the units where various electrical armatures are located in addition to providing the necessary gases to the patients, together with the equipment rails on it, in order to ensure that the accessories and equipment to be used by the healthcare personnel can be used more easily.
Place of Use
It is generally used in intensive care units (Internal, Surgical, Cardiology, Neonatal, Intensive care units…) and in some applications in Intervention rooms.
Product Conforming to the Following Standards
✓ EN 62366-1 : 2015 ✓ EN ISO 15223-1 : 2021 ✓ EN ISO 20417 : 2021
✓ EN ISO 11197 : 2019 ✓ EN ISO 14971 : 2020 ✓ EN 5359 : 2012
,✓ EN 60601-1 : 2009 ✓ EN 60601-1-2 : 2016 ✓ HTM 02-01
Standard Unit Technical Characteristics (1 Patient)
Product Code : MG-YOD-P

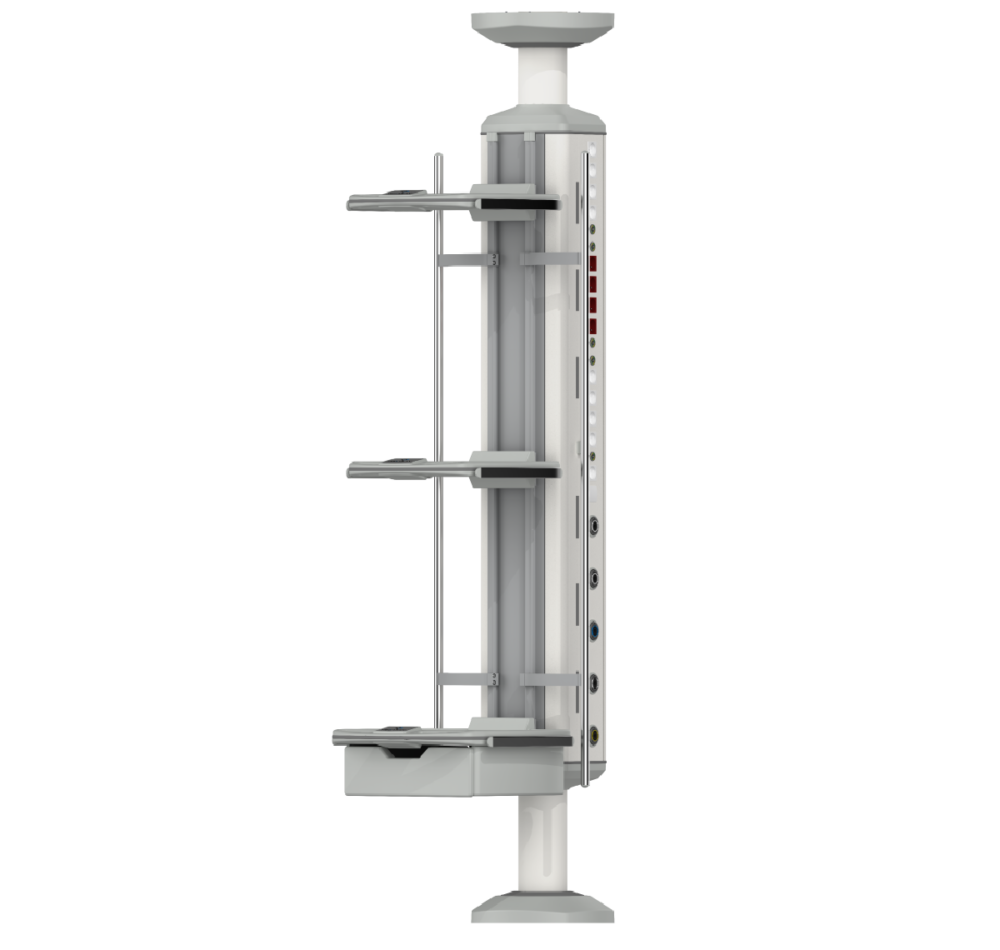

Product Name : Vertical Intensive Care Unit – Premium
Carrying Capacity : Max 300 Kg
Gas Equipment : According to Project
Electrical Equipment : 8 x Power Outlets 4 x Grounding Nodes
Operating Temperature : (+10) – (+45) C°
Supply Voltage : 220 V 50 Hz
Package Type : Packaging.
Cable Management System : Yes
Easy Service and Maintenance : Yes
Infusion Carrier Arm : 2 Pcs (Ø25mm)
Product Main Material Structure : Aluminum Extrusion Profile, PC ABS Plastic
Metal Parts Color : RAL 9016
Plastic Part Color : RAL 7035
Monitor Stand with Rail : 2 Pcs
Monitor Stand with Drawer & Rail : 1 Piece
Body Color : Anodic oxidation
Antibacterial Paint Option : Yes*
Cover Color : Blue, Yellow, Red, Lilac**
Accessories (Optional) : Gas Outlets, Serum Hanger, Instrument Basket, Suction Jar.
* Antibacterial paint option may differ from normal paints.
** Different color options may be charged separately.
Easy connection of the desired accessories thanks to 2 fixed, 25x10mm vertical equipment rails on the unit.
The hinged design allows quick access to all solenoid valves and connections positioned inside the service head. Prevents repeated opening of ceilings and disruption of the sterile zone.
Electrical outlets attached to the body with flame-proof plastic plugs, ensuring that no electrical leakage will pass through the body and that both patients and healthcare personnel will not be electrocuted.
The ergonomic and functional design minimizes injuries from bumps and trips. The pendants have plastic patterns with minimized surface roughness and a finely grainy powder-coated finish and are perfectly cleanable.
Gas and electric outlets can be optionally selected according to the required standards.
All gas and electrical components inlet points and installation connection provision holes were drilled before painting, internal wiring and tubing were completed before product delivery and all tests were carried out according to EN 60601-1.
All internal wiring is equipped with halogen-free cables, as are the plastic insulating plugs of the electrical outlets.
Can be opened to access the ceiling when necessary.
3 channel options to fit more gas and electricity needs.
