Piston Medical Air Compressor
In Stock

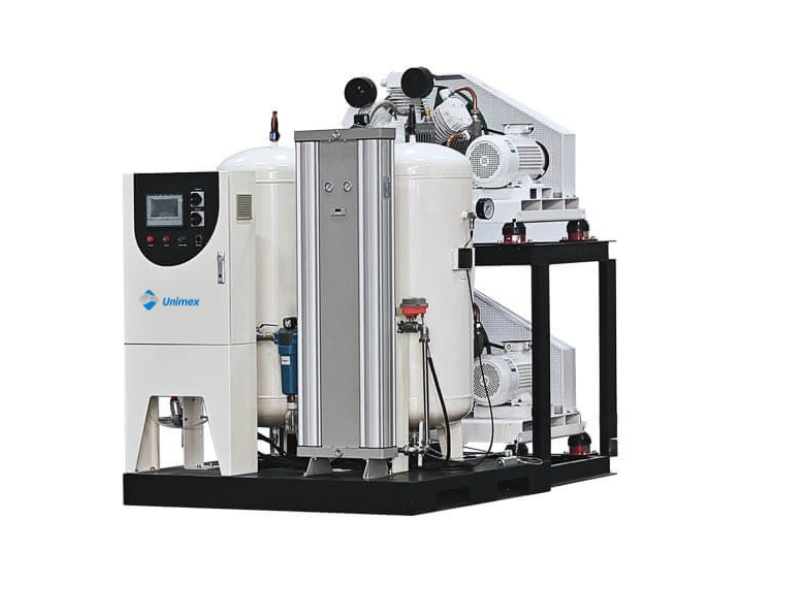

The Unimex medical air compressor system is designed to provide continuous medical quality air. It consists of two or more piston air compressors, air tank, control system, dryer, filter, etc. With various filter and drying, stages remove harmful gases, bacteria, oil, and water from compressed air. The entire system should be “duplex” so that any single functional failure will not affect the integrity of the medical compressed air supply.
Product Detail
Unimex reciprocating piston medical air compressor is rotary, oil-less reciprocating, air-cooled design, provides clean & oil-free air by using composite resin piston to reduce heat and increase service life. The piston medical air compressor system using the most advanced modern technology, the design and manufacture process is in strict accordance with international standards, quality assurance, long service life.
Specifications
- Provide 100% oil-free air
- Dew point temperature: – 10°C
- The rotor is processed through multiple processes to ensure the accuracy, reliability, and effectiveness
- Each stage of compression reduces the pressure ratio, reduces bearing load and extends the life of the host machine
- Wide range of exhaust gas, independent of pressure, can adapt to a wide range of pressure and cooling capacity
Model
| System | Model | Power (KW Each) |
Power (HP Each) |
Capacity(@100PSIG) m³/min |
Noise level DB(A)±3db |
| Duplex | PMA03D | 2.2 x2 | 3 x 2 | 0.24 | 71 |
| PMA05D | 4 x 2 | 5.3 x 2 | 0.45 | 74 | |
| PMA07D | 5.5 x 2 | 7.5 x 2 | 0.6 | 75 | |
| PMA10D | 7.5 x 2 | 10 x 2 | 0.9 | 76 | |
| PMA15D | 11.2 x 2 | 15 x 2 | 1.25 | 79 | |
| Triplex | PMA07T | 5.5 x 3 | 7.5 x 3 | 1.2 | 76 |
| PMA10T | 7.5 x 3 | 10 x 3 | 1.8 | 77 | |
| PMA15T | 11.2x 3 | 15 x 3 | 2.5 | 80 | |
| Quadplex | PMA07Q | 5.5 x 4 | 7.5 x 4 | 1.8 | 77 |
| PMA10Q | 7.5 x 4 | 10 x 4 | 2.7 | 78 | |
| PMA15Q | 11.2 x 4 | 15 x 4 | 3.75 | 81 |
