Medical vacuum systems are installed in areas where the need for them is low or where the plant’s footprint is limited.
Product Code: MG-VSx-y x:40,70,100,150,250,… y:2,3…

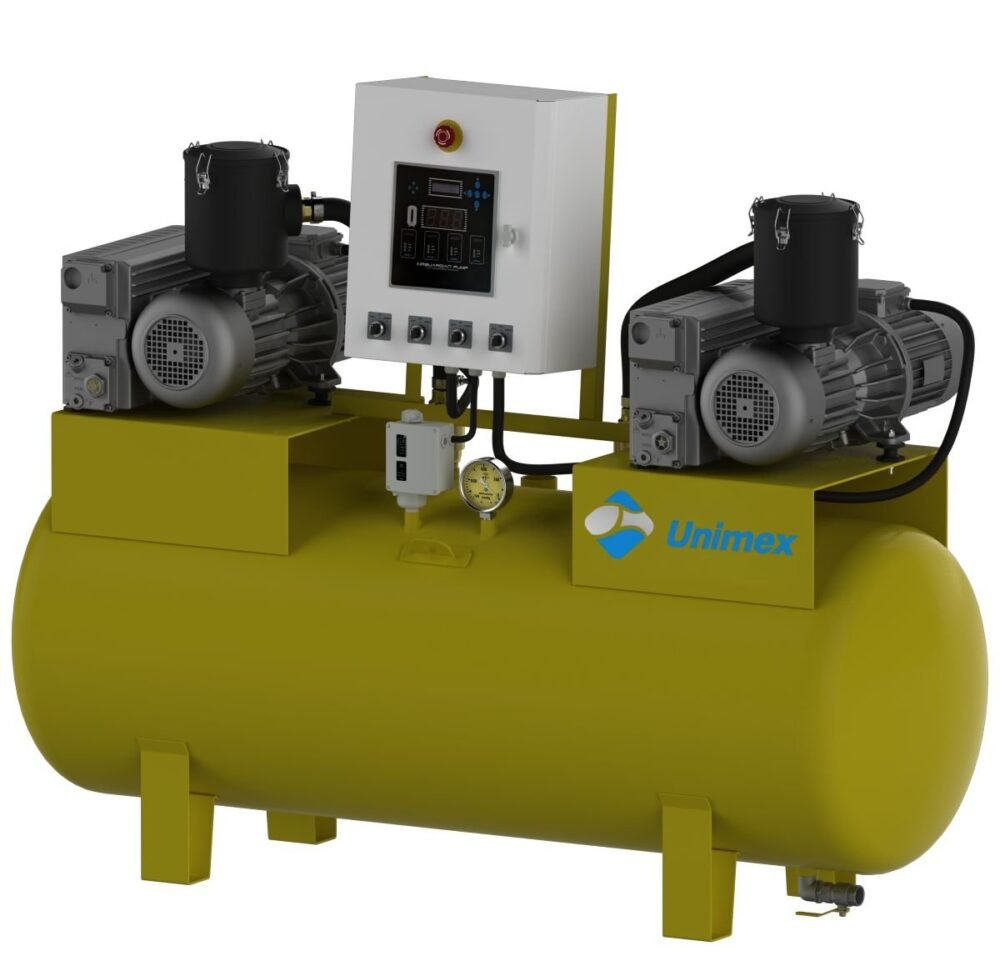

Product Name: Horizontal Type Medical Vacuum Center
Number of Pumps: Minimum 2 pumps (determined according to the project)
Pump Capacity: 40, 70, 100, 175, 250, … m3/h
Control Panel: PLC System controlling based on the principle of equal aging.
Tank Capacity: 500, 1000, … liters (depending on project and power plant capacity)
Operating Temperature Range: (+10°)-(+45°)
Power Supply: 380 V, 50 Hz. (Power varies according to capacity)
Collection Jar: 1 Piece
Filter: 1 piece
Package Weight: 334 kg (for MG-VS70-2)
Package Dimensions: 85x190x135cm (for MG-VS70-2)

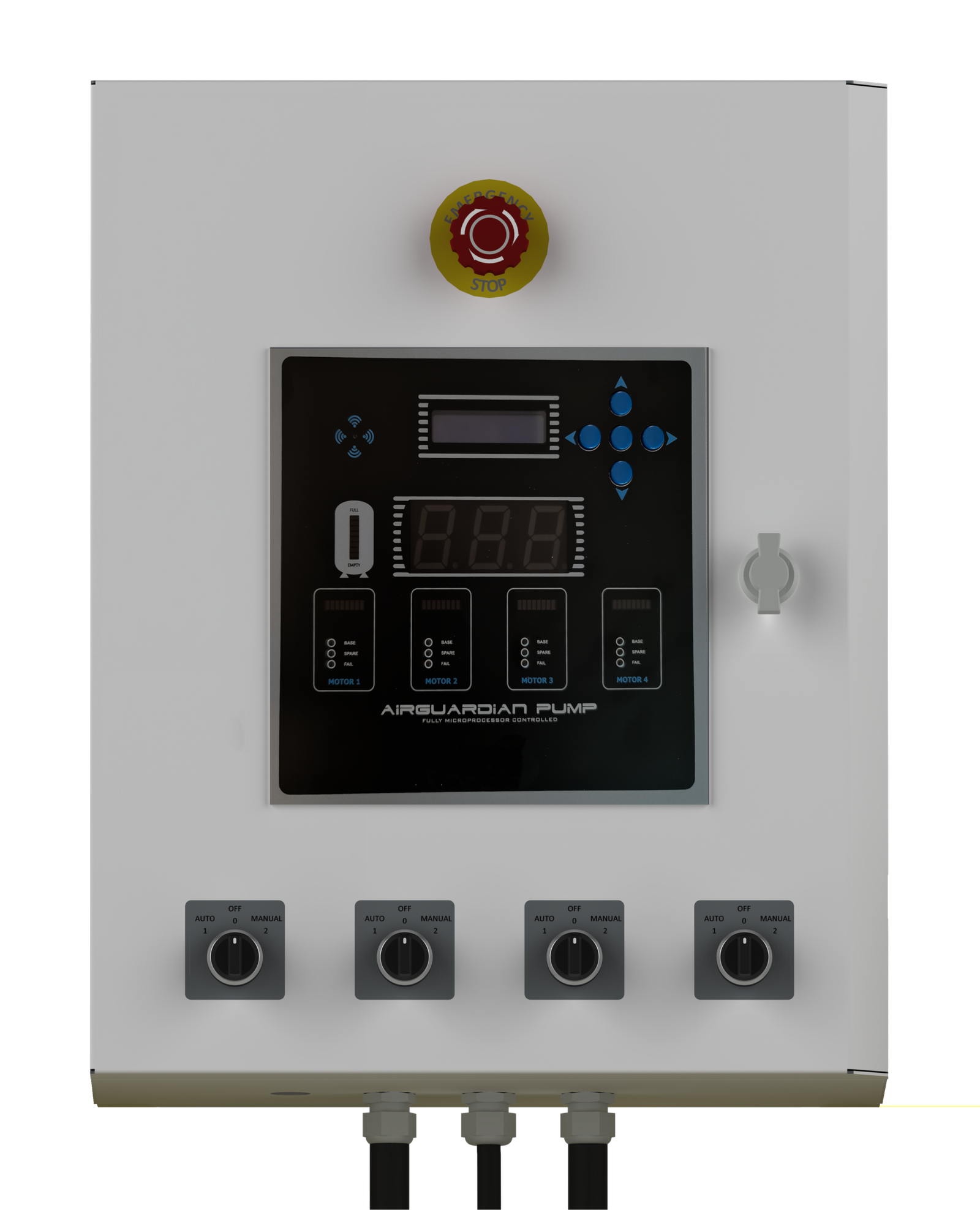

This panel can display the pressure value in the line; provides visual and audible alarms when the vacuum pressure drops below the set pressure value; can repeat and record these alarms; and is password-protected, preventing access by unauthorized personnel.

Thanks to the vacuum switch located on the vacuum tank, the vacuum handling unit is automatically activated when the vacuum pressure in the line falls below the desired value.

The filter group prevents damage to the vacuum unit and tank by filtering waste materials from medical vacuum systems, thus extending their lifespan.

This system is used in medical vacuum installations to ensure that gas flow to the relevant end unit where the distribution is made continues even during service, maintenance, and similar situations.

It allows monitoring of the vacuum pressure value in the vacuum line in the event of a power outage

A vacuum pump system saves fuel and extends pump life by enabling two or more different compressors to operate sequentially at specific time intervals during operation.
