Japanese Standard Gas Outlets
In Stock
Medical gas outlet is used for medical gas system daily medical care and installed at gas systems delivery points(wardroom bed head units, medical pendants, and equipment wall) to provide the required medical gas. AmcareMed medical gas outlets can provide 7 kinds of gas, including oxygen, medical air, vacuum, nitrous oxide, carbon dioxide, nitrogen, and instrument air.
Product Detail

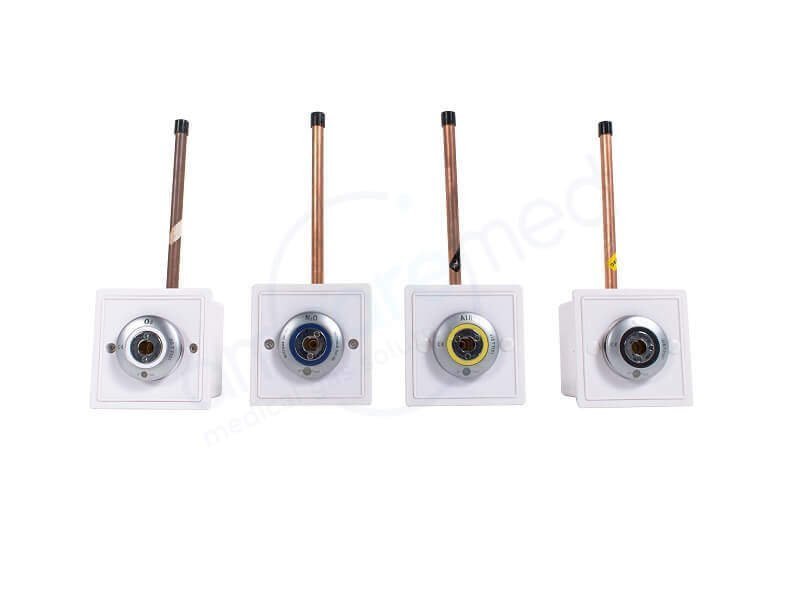

AmcareMed Japanese gas outlets include wall mount type and rough-in assembly type. Wall mount type is using installed on the wall, available in plastic and metal covers. Rough-in assembly type is using on the bed head unit. Connector with JIS adaptor could use oxygen flowmeter with humidifier bottle and suction regulator.
In order to prevent a cross-connection, the different gas types with different quick connections. 100% tested and individually packaged. You can choose the gas type in the box and we finished according to your need.
Specifications
- Color-coded for easy gas service identification
- The main body uses high-quality copper alloy, well-manufactured
- Insertion and extraction 10000 times without failure
- 100% pressure and leak-tested, can be used safely and securely
- Built-in check valve, safely cut off the gas source when the probe is pulled out
- JIS/Japanese standard Gas-specific adapters
- Swivel pipe design for easy installation
- 8 mm piping/10 mm piping
Technical Data
| Working pressure | 4-8bar |
| OD Size | 8mm, 10mm, 12mm K type copper pipeline |
| Weight | 0.4( wall type with box), 0.34kg(console type) |
Model
| Gas Service | Wall type | Console type |
| OXYGEN | JIS-WAL-OXY | JIS-CON-OXY |
| MEDICAL AIR | JIS-WAL-AIR | JIS-CON-AIR |
| MEDVAC | JIS-WAL-VAC | JIS-CON-VAC |
| NITROUS OXIDE | IS-WAL-N2O | JIS-CON-N2O |
| NITROGEN | JIS-WAL-CO2 | JIS-CON-CO2 |
| CARBON DIOXIDE | JIS-WAL-N2 | JIS-CON-N2 |
| Instrument Air | JIS-WAL-AIR7 | JIS-CON-AIR7 |
