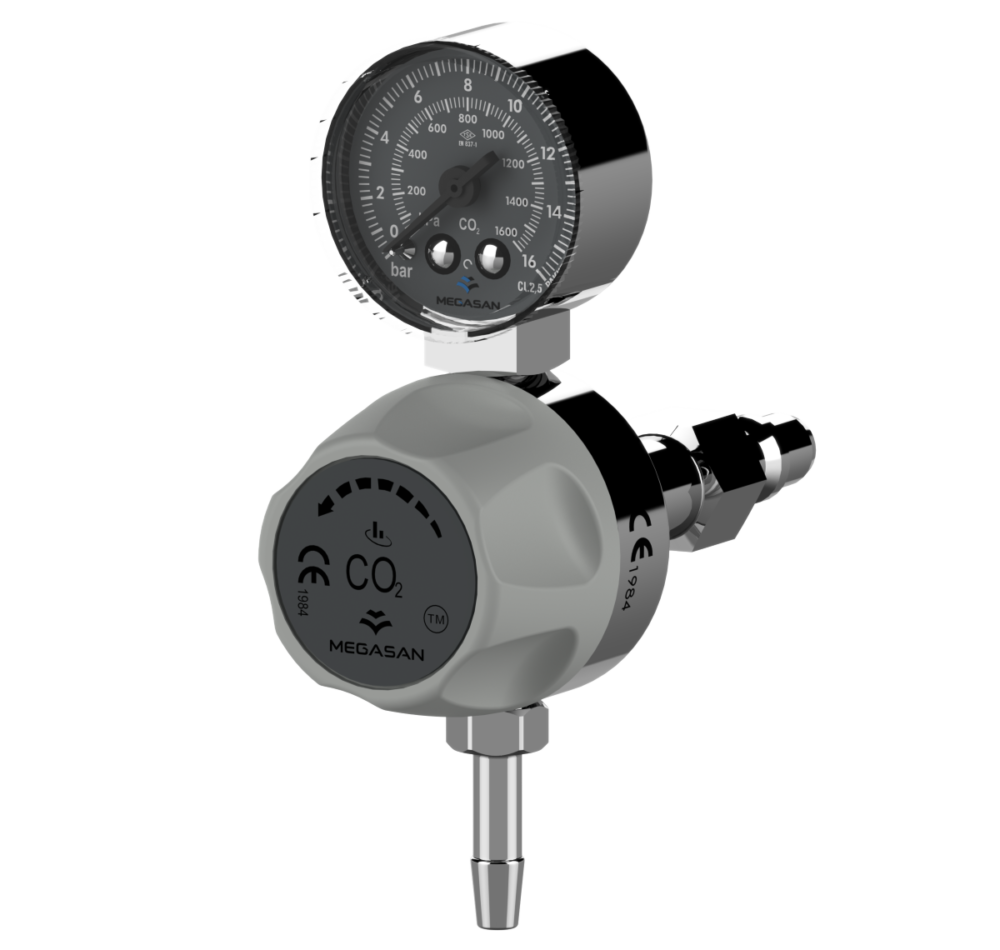

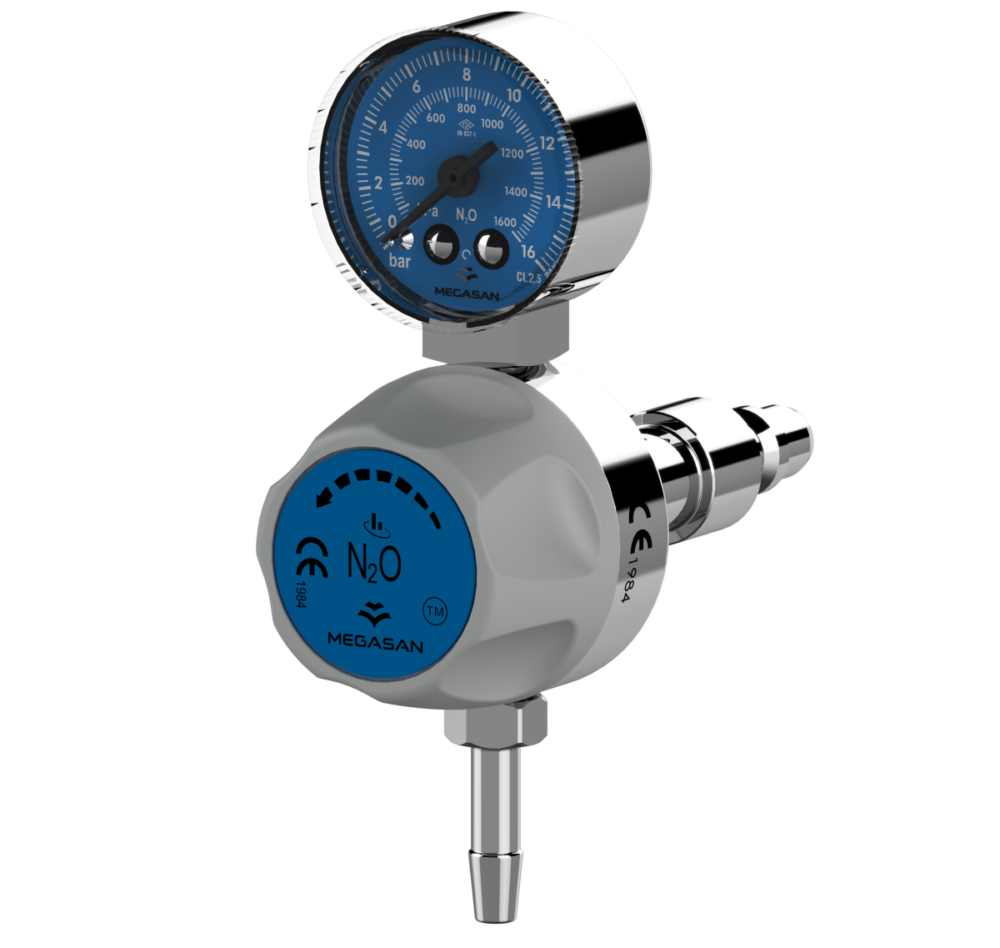

Gas Flow Control Valve

Purpose of Use

Pressure and flow regulators are medical equipment used by healthcare professionals to ensure the delivery of required gases to patients or medical devices at specified flow rates and pressures during treatment. They are typically integrated with gas outlets, probes, and equipment rails.

Usage Environments

Pressure and flow regulators are commonly employed in operating rooms, intensive care units, service rooms, and treatment areas.

Do Not Use the Device in the Following Environments

It is strongly discouraged to use the device in areas where the oxygen concentration exceeds 25% by volume, in locations where flammable or explosive gas mixtures may be present, and in areas where magnetic field applications are being conducted (e.g., magnetic resonance imaging).

Product Conforming to the following Standards

✓ EN ISO 15223-1:2021     ✓ EN ISO 10524-1:2019    ✓ EN 62366-1:2015

✓ EN ISO 10524-2:2019    ✓ EN ISO 11197:2016         ✓ EN ISO 10524-3:2019

✓ EN ISO 14971:2020        ✓ EN ISO 10524-4:2008   ✓ EN ISO 20417:2021

✓ EN ISO 7396-1:2016      ✓ EN ISO 15001:2012         ✓ EN 60601-1:2009

✓ EN ISO 21969:2010       ✓ EN 60601-1-2:2016        ✓ EN ISO 15002:2010

✓ EN 60601-1-8:2008      ✓ EN 62304:2009              ✓ HTM02-01

Unit Technical Specifications

Product Code                             : MG-GAMx-y

x : O (Oxygen), A (N2O), SA (Pure Nitrogen), AR (Argon), KG (Gas Mixture), K (Carbon Dioxide), HD (Hydrogen), H (Dry Air), HE (Helium), AT (Acetylene),

EO (Ethylene Oxide), H4 (Air 4 Bar), H7 (Air 7 Bar)

y : B (BS), D (DIN), F (Afnor), OM (Ohmeda)

Product Name                            : Gas Flow Control Valve

Operating Range                        : 0-10 Bar

Package Type                             : Carton Box

Package Dimensions                  : 4x15x12 cm

Weight                                        : 495 grams
