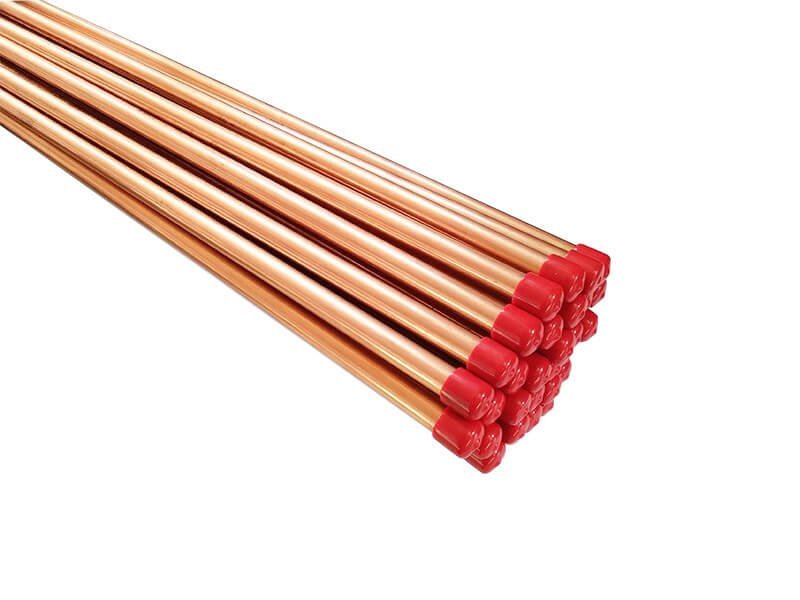

Degreased Medical Copper Pipe
In Stock
Unimex degreased medical copper pipe is designed for use in medical gas pipeline system installations and is manufactured under strict quality control procedures under ISO 13485, EN 13348, and EN 1057. These pipes are degreased to remove any contaminants or oils, ensuring that the medical gases delivered through them remain pure and safe for patient care.
Product Detail
Unimex degreased medical copper pipes undergo a strict degreasing process to ensure that all oils and contaminants are removed. This ensures that no harmful substances are introduced into medical gas systems, maintaining the purity of gases such as oxygen, nitrous oxide, and medical air. The pipes are available in various sizes and lengths to suit specific installation requirements.
Specifications
- Adopting continuous casting and rolling production process, high purity, fine structure, and low oxygen content
- No porosity, trachoma, loose, good thermal conductivity, processability, ductility, corrosion resistance, and weather resistance. Easy to solder and braze
- Supply copper tubes of BS 13348, Type K and Type L
- The product quality is stable, the pressure is high, the elongation rate is high, and the cleanliness is high, which meets the high cleaning requirements of fluorine-free refrigeration equipment
- Straight tube plastic film winding, can be plugged, can be loaded with wooden boxes
Model
BS EN 13348 Standard：
| Model | Diameter(mm) | Thickness(mm) | Working Pressure（Bar） |
| CP-12 | 12 | 0.6 | 77 |
| CP-15 | 15 | 0.7 | 63 |
| CP-22 | 22 | 0.9 | 58 |
| CP-28 | 28 | 0.9 | 51 |
| CP-35 | 35 | 1.2 | 40 |
| CP-42 | 42 | 1.2 | 35 |
| CP-54 | 54 | 1.2 | 27 |
| CP-67 | 67 | 1.5 | 26 |
| CP-76 | 76 | 1.5 | 29 |
| CP-108 | 108 | 1.5 | 16 |
Type K Nitrogenized ACR/MED：
| NOM.DIM | O.D. | WT/FT | WALL | 150°F |
| 1/4 | 3/8 | 0.145 | 0.035 | 913 |
| 3/8 | 1/2 | 0.269 | 0.049 | 960 |
| 1/2 | 5/8 | 0.344 | 0.049 | 758 |
| 5/8 | 3/4 | 0.418 | 0.049 | 700↑ |
| 3/4 | 7/8 | 0.641 | 0.065 | 700↑ |
| 1 | 1 1/8 | 0.839 | 0.065 | 700↑ |
| 1 1/4 | 1 3/8 | 1.04 | 0.065 | 700↑ |
| 1 1/2 | 1 5/8 | 1.36 | 0.072 | 700↑ |
| 2 | 2 1/8 | 2.06 | 0.083 | 700↑ |
| 2 1/2 | 2 5/8 | 2.93 | 0.095 | 700↑ |
| 3 | 3 1/8 | 4 | 0.109 | 500^ |
| 3 1/2 | 3 5/8 | 5.12 | 0.12 | 450^ |
| 4 | 4 1/8 | 6.51 | 0.134 | 450^ |
| 5 | 5 1/8 | 9.67 | 0.16 | 293 |
| 6 | 6 1/8 | 13.9 | 0.192 | 295 |
| 8 | 8 1/8 | 25.9 | 0.271 | 314 |
Type L Nitrogenized ACR/MED：
| NOM.DIM | O.D. | WT/FT | WALL | 150°F |
| 1/4 | 3/8 | 0.126 | 0.03 | 775 |
| 3/8 | 1/2 | 0.198 | 0.035 | 700↑ |
| 1/2 | 5/8 | 0.285 | 0.04 | 700↑ |
| 5/8 | 3/4 | 0.362 | 0.042 | 700↑ |
| 3/4 | 7/8 | 0.455 | 0.045 | 700↑ |
| 1 | 1 1/8 | 0.655 | 0.05 | 700↑ |
| 1 1/4 | 1 3/8 | 0.884 | 0.055 | 700↑ |
| 1 1/2 | 1 5/8 | 1.14 | 0.06 | 650^ |
| 2 | 2 1/8 | 1.75 | 0.07 | 550^ |
| 2 1/2 | 2 5/8 | 2.48 | 0.08 | 500^ |
| 3 | 3 1/8 | 3.33 | 0.09 | 450^ |
| 3 1/2 | 3 5/8 | 4.29 | 0.1 | 450^ |
| 4 | 4 1/8 | 5.38 | 0.11 | 400^ |
| 5 | 5 1/8 | 7.61 | 0.125 | 229 |
| 6 | 6 1/8 | 10.2 | 0.14 | 213 |
| 8 | 8 1/8 | 19.3 | 0.2 | 230 |
