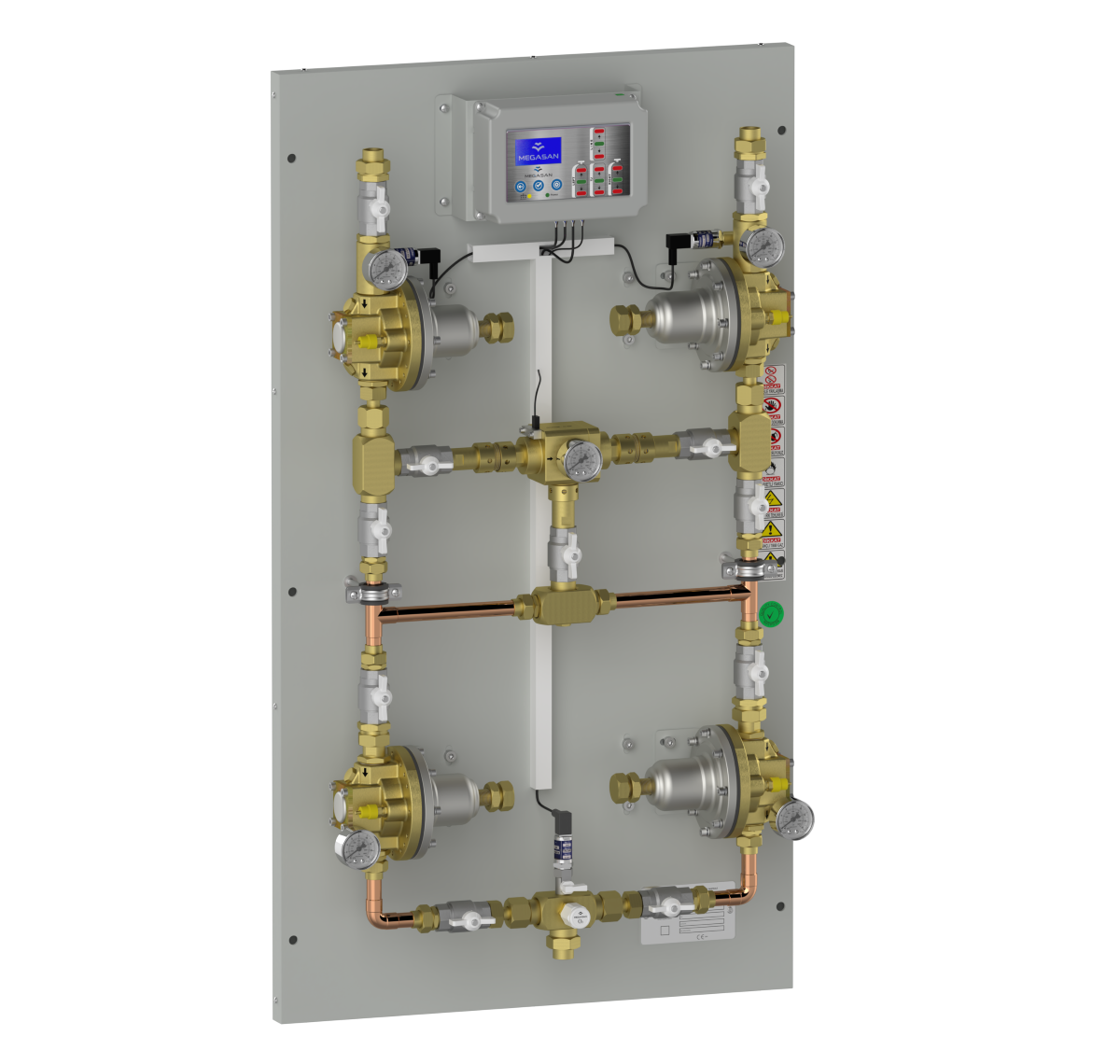

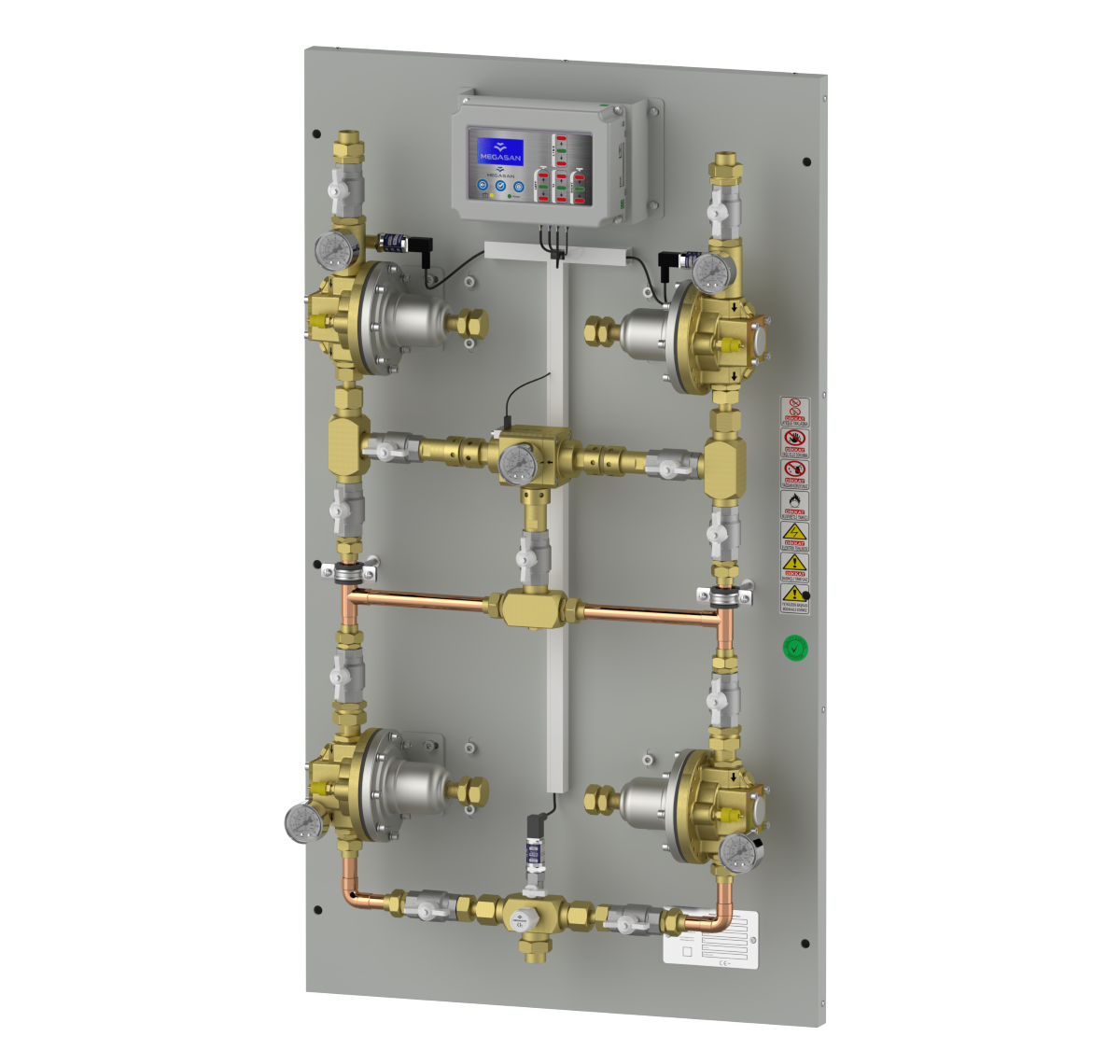

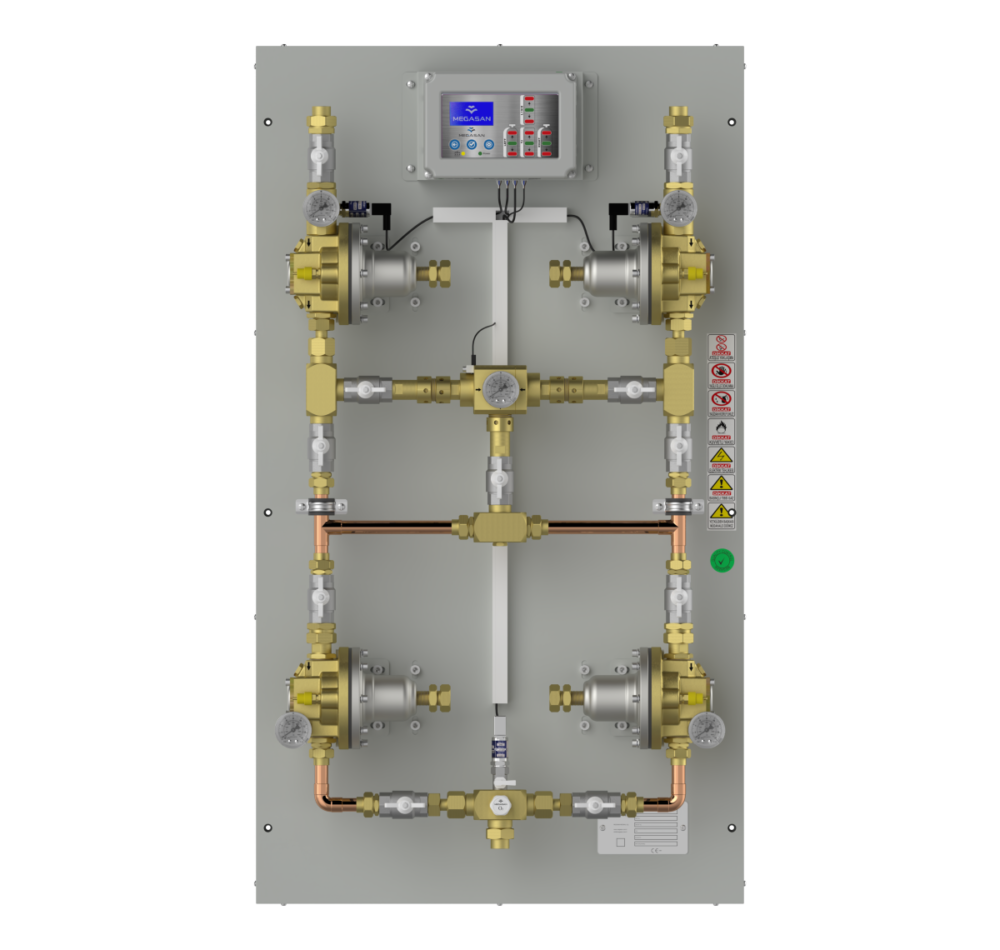

It is a system that automatically activates the backup system in case of any problem in the liquid tanks used in the supply of the hospital installation. It makes the gas flow uninterrupted.
Technical Specifications
Product Code : MG-LOCP
Product Name : Liquid – Cylinder Cycle Unit
Input – Output Pressure : 4 – 7 Bar
Capacity : 150 m3/h
Input Number : 4 Pieces (Primary Ramp, Spare Ramp, External supply point and Emergency supply socket) Operating
Temperature Value : (+10) – (+45) C°
Power Supply : 220 V 50 Hz 100 Watt
Package Type : Carton Box
Package Sizes : 118 x 67 x 24 cm
Package Weight : 45 Kg
Alarm System : Visual and Sensory, Digital Pressure Gauge
7” alarm system that can be added on the panels at any time, can show the pressure value in the ramps, gives visual and audible alarms, can repeat the alarms given and keep them under record, has ModBus integration, cannot be accessed except by authorised personnel thanks to its password, shows the area where it is installed and can be used with PLC display or touch LED display if desired. For detailed information on alarm units, please see the MEGASAN Functional Alarm Systems catalogue.
All gas contact surfaces are made of copper, brass and gaskets which are compatible with all medical gases, including oxygen. All types of medical gases do not react to the materials they are passing through.
When the product is installed on site, there are pre-use isolation plugs to prevent the unit from contaminating the unit and thus contaminating the installation in the time before it is welded with the pipeline.
A plastic bracket is used to prevent the panel sheet from damaging the copper pipes and to prevent corrosion and oxidation of the copper pipes.
In case of any power failure, the panel cover can be opened and the installation pressures can be observed by looking at the fully mechanically operated pressure gauges.
