In Stock

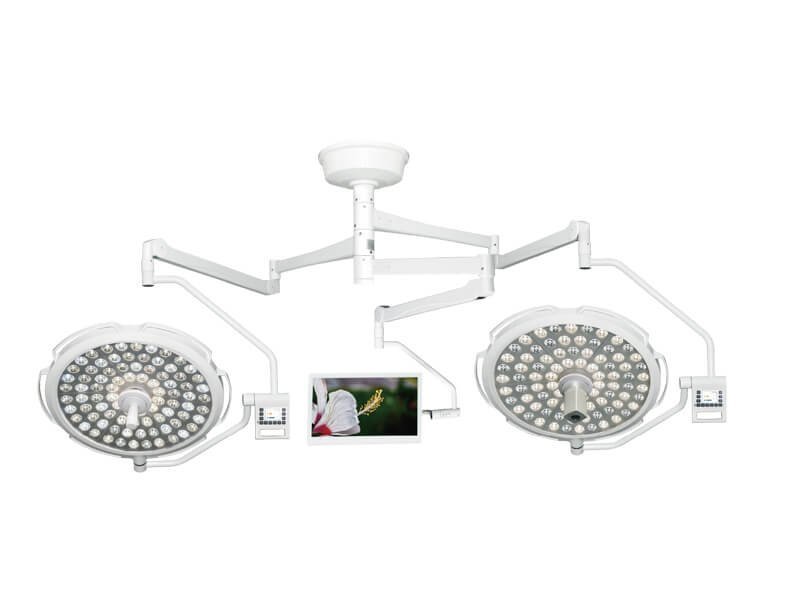

Unimex ceiling mount surgical light with LCD Monitor combines shadowless lighting with a high-definition display, it enhances both surgical precision and communication in the operating room.
The camera system for the surgical lights with LCD monitor is available in both central (in-light) and external mounting options. It utilizes
high-frequency PWM (pulse-width modulation) dimming technology, effectively eliminating flickering issues during video
capture for stable and clear imaging.
HD Camera System
High-definition medical monitor for endoscopic surgery
| Model | AM-G700/500LED-TV | AM-G700/700 LED-TV |
| Illuminance(Lux) | 40000-160000/40000-120000 | 40000-160000/40000-160000 |
| Colour temperature | 4000-5000 | 4000-5000 |
| Colour reduction index(Ra) | ≥95 | ≥95 |
| Radiation Energy | 578w/m2/509w/m2 | 578w/m2/578w/m2 |
| Field Diameter(mm) | 180-280 | 180-280 |
| Service life of illuminant | 50,000h | 50,000h |
| Power supply | AC110-240V | AC110-240V |
| Voltage | 50Hz/60Hz | 50Hz/60Hz |
| Instal Height(2.5m can be customized) | 2.75-3m | 2.75-3m |
| Lamp Power | 100VA/98VA | 100VA/100VA |
| LED Quantity | 138(84+54) | 168(84+84) |
| Ilumination Depth20% Ec(mm) | 1069/1340 | 1069/1069 |
| Light Head Thickness(mm) ±5 | 100/89 | 100/100 |
