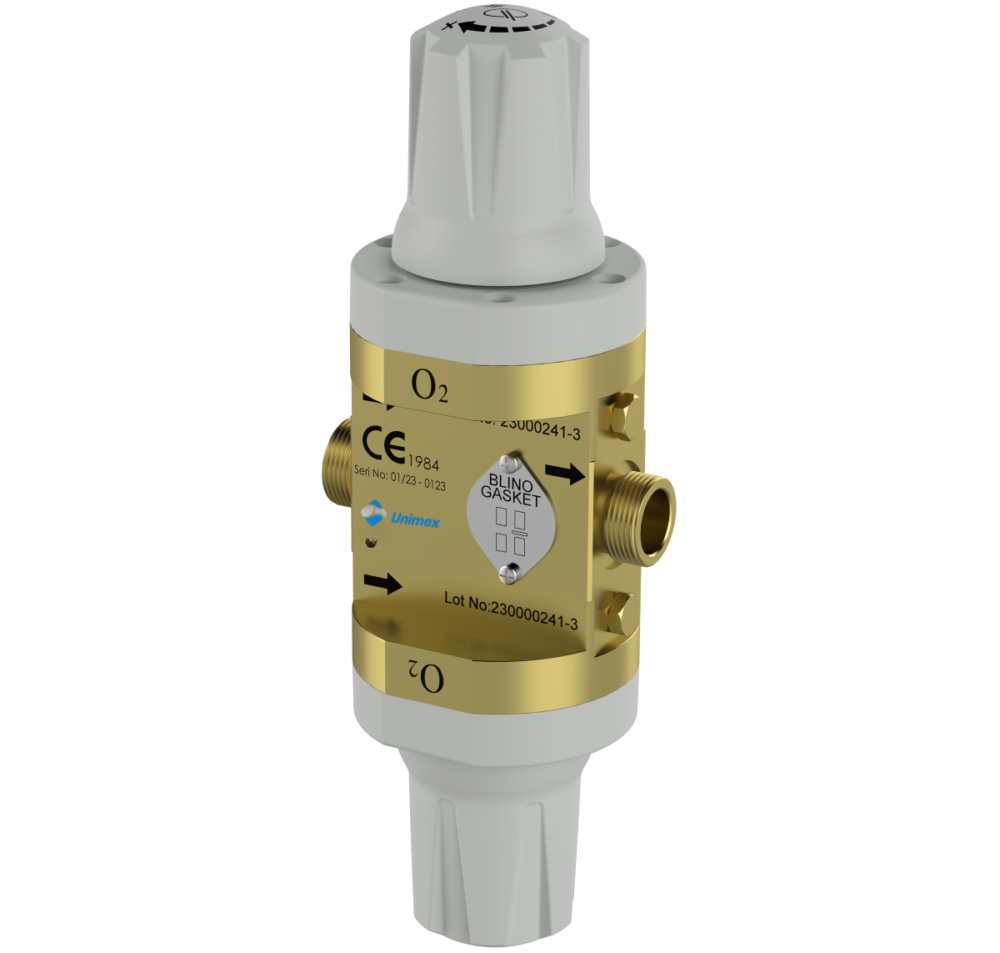

By-Pass Regulator

Thanks to the double-sided regulator system, it is the medical regulator that provides gas flow at the desired pressure values without interruption even during maintenance and repair. The By-Pass system is assembled on a single body without the need for complex assemblies.

Input Pressure                                             : 10 Bar Max.

Output Pressure                                          : 0-10 Bar

Operating Temperature                             : (+10) – (+45)

Surface Materials in Contact With Gas  : Brass

Compatible Gases                                       : O₂, N₂O, N₂, CO₂ , Mix.

Input Thread Size                                        : W 1/2’’

Output Thread Size                                     : W 1/2’’

Weight                                                          : 5,8 – 6,2 kg

Sealing Elements                                         : NBR

Springs in Contact With the Gas              : Stainless Steel (302)
