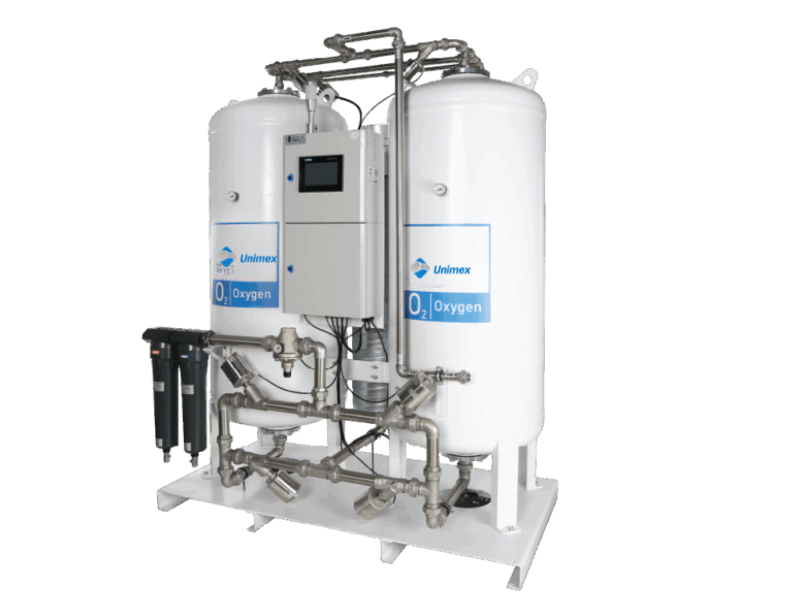

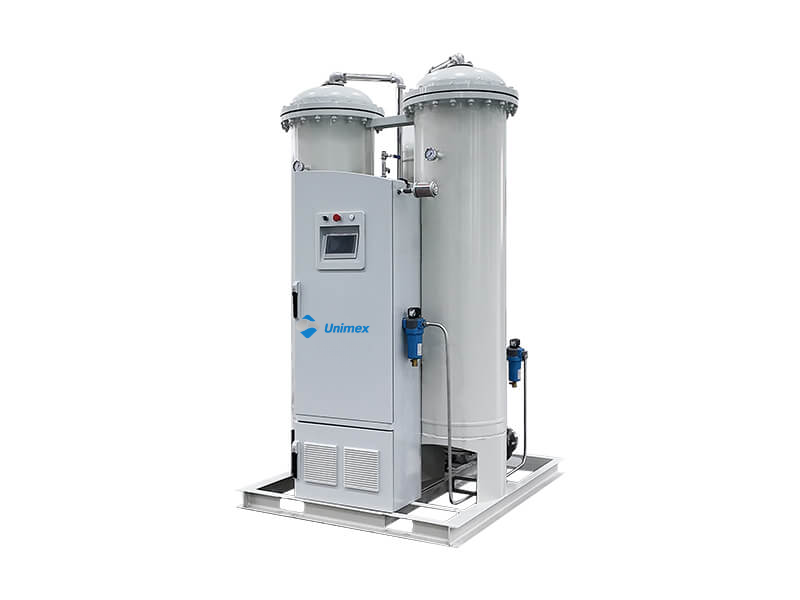

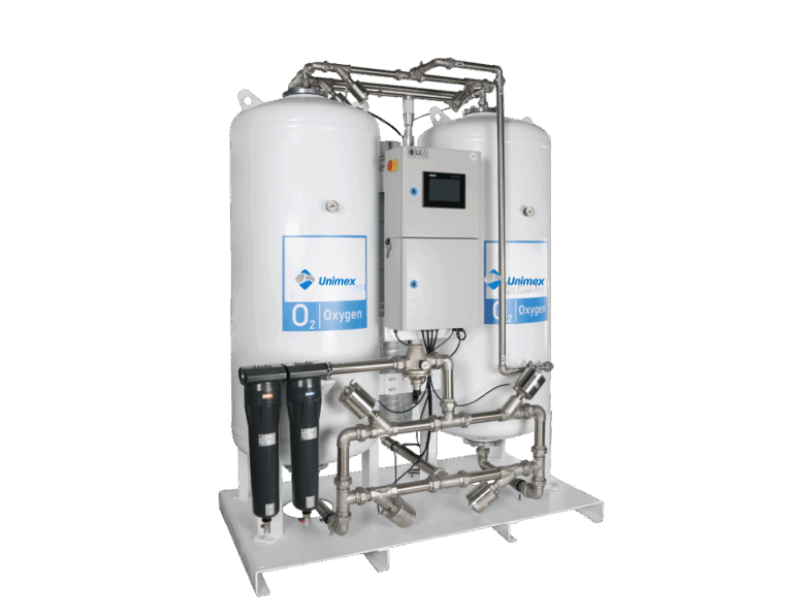

94% and 99% Ultra High Purity PSA Oxygen Generators

Product Detail:

Unimex 94-99% Ultra High Purity Oxygen Generators utilize advanced PSA technology to deliver up to 99% purity oxygen. By adding a purified oxygen generator unit, it meets the stringent demands of medical and cleanroom applications.

Equipped with an advanced automatic control system, the generator ensures 24/7 reliable oxygen supply with minimal downtime, maintaining the safety and continuity of care. Compared to traditional cylinder oxygen supply, this system offers a cost-effective solution for long-term oxygen needs.

The principle of the 94% and 99% (ultra-high purity PSA (pressure swing adsorption) oxygen generator is based on the difference in the adsorption characteristics of molecular sieves for different gases. It separates oxygen and nitrogen by periodically changing the system pressure and continuously extracts high-purity oxygen from the air. The dual oxygen generator can further improve the oxygen purity to more than 99%.

Specifications:

• Oxygen Generators Capacity: 3Nm3/h~100Nm3/h
• Medical Oxygen Purity: 94% and 99% UHP (with PSA technology)
• Power supply: 380V/220V
• Out Pressure: 0.3~0.55 Mpa (adjustable)
• Operation Noise: ≤85dB(A)
• Comply with ISO 13485, EN ISO 7396-1 and EN 60601-1
• Two pcs molecular sieve beds, ensure uninterrupted operation
• High Efficiency Molecular Sieve:   Adopts advanced filling technology, excellent adsorption efficiency, and longer use life
• Quality Control:   Monitor oxygen purity, CO, CO2, dew point, and NO2 to ensure the produced oxygen meets standards.
• Medical Grade Tubing:   Use medical-grade stainless steel pipes and fittings, with all oxygen-contact components undergoing strict treatments to ensure optimal oxygen cleanliness
• Automatic Control Panel:   Monitor signals from the pressure sensor and provides an alarm system and a fail-safe shutdown model.
